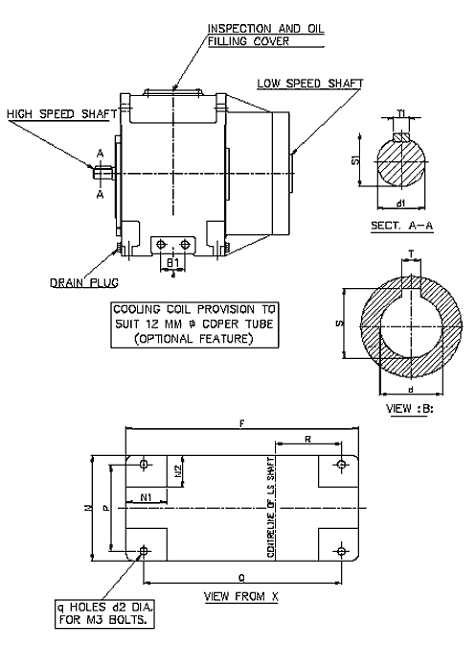

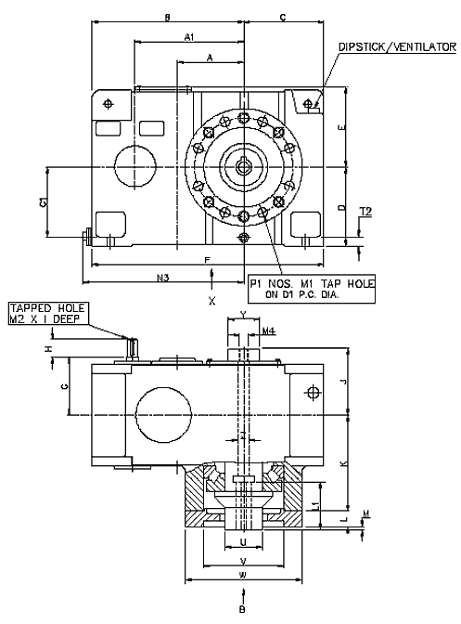

Dimension details of Extruder Gearbox

Principal Dimensions (Unless specified otherwise all dimensions are in mm)

Dimension details of Extruder Gearbox

Send Enquiry

Capacity Rating Chart
Capacity Ratings chart of Agnee Extruder Gearboxes

Salient Features
Salient features of Agnee
Extruder Gearboxes

Approved Lubricants for Extruder Gear Box

Principal Dimensions (Unless specified otherwise all dimensions are in mm)

SIZE	A	A1	B	B1	C	C1	D	D1	d	d1	d2	E	F	G	H
Ex-112	112	192	267	50	135	100	125	160	30.041 30.020	22.009 21.996	14	140	402	112	50
Ex-125	125	225	315	60	150	112	140	185	40.050 40.025	25.009 24.996	14	154	465	125	60
Ex-140	140	240	330	90	165	127	160	205	45.050 45.025	32.018 32.002	14	174	495	140	80
Ex-160	160	272	375	110	185	145	180	290	60.060 60.030	35.018 35.002	18	194	550	160	80
Ex-180	180	305	420	110	200	165	200	305	75.060 75.030	38.018 38.002	18	214	610	175	80
Ex-200	200	340	465	135	225	185	225	330	80.060 80.030	38.018 38.002	22	239	680	185	80
Ex-225	225	385	567	135	250	210	250	370	90.071 90.036	45.018 45.002	22	267	760	205	110
Ex-250	250	430	632	150	280	237	280	410	100.071 100.036	55.030 55.011	26	298	850	220	110

SIZE	J	K	L	I	L1	M	M1	M2	M3
Ex-112	112	160	26	16	90	5	M12	M6	M12
Ex-125	125	185	30	16	120	5	M12	M6	M12
Ex-140	140	220	30	20	135	5	M16	M8	M12
Ex-160	168	246	35	32	160	5	M16	M8	M16
Ex-180	180	273	40	32	200	7	M16	M16	M16
Ex-200	200	300	40	32	225	8	M16	M16	M20
Ex-225	215	335	45	32	240	8	M20	M16	M20
Ex-250	235	375	45	50	260	8	M20	M24	M24

SIZE	M4	N	N1	N2	N3	P	P1	Q	q	R	S	S1	T	T1	T2
Ex-112	M12	174	100	60	308	144	8	322	4	95	33.500 33.300	24.500 24.400	8.018 7.982	6.000 5.970	20
Ex-125	M16	194	100	60	356	160	8	375	4	105	43.500 43.300	28.000 27.800	12.022 11.978	8.000 7.964	20
Ex-140	M20	224	100	60	371	190	8	405	4	120	49.000 48.800	35.000 34.800	14.022 13.978	10.000 9.964	20
Ex-160	M30	260	110	70	408	225	8	450	4	135	64.600 64.400	38.000 37.800	18.022 17.978	10.000 9.964	20
Ex-180	M30	290	120	85	453	250	8	505	4	147.5	80.100 79.900	41.000 40.800	20.026 19.974	10.000 9.964	20
Ex-200	M36	310	125	90	500	265	8	560	4	165	85.600 85.400	41.000 40.800	22.026 21.974	10.000 9.964	20
Ex-225	M36	340	130	95	555	280	8	630	4	185	95.600 95.400	48.500 48.300	25.026 24.974	14.000 13.957	20
Ex-250	M36	370	140	115	615	300	8	710	4	210	106.600 106.400	59.000 58.800	28.026 27.974	16.000 15.957	20

SIZE	U	V	W	Y	Z
Ex-112	60.000 59.954	130.040 130.000	190	50.000 49.961	16
Ex-125	70.000 69.954	150.040 150.000	220	60.000 59.954	20
Ex-140	80.000 79.954	170.040 170.000	240	70.000 69.954	25
Ex-160	110.000 109.946	230.046 230.000	330	80.000 79.954	34
Ex-180	130.000 129.937	270.057 270.000	340	80.000 79.954	34
Ex-200	140.000 139.937	280.052 280.000	380	90.000 89.946	45
Ex-225	160.000 159.937	320.057 320.000	420	100.000 99.937	45
Ex-250	180.000 179.937	360.057 360.000	460	110.000 109.946	45

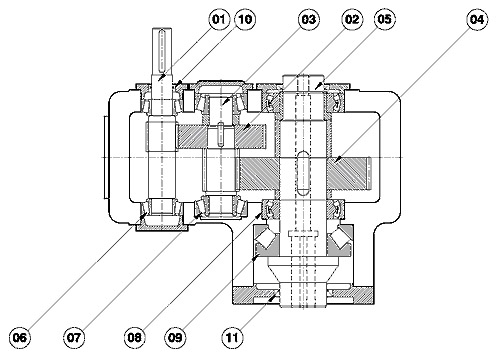

SECTIONAL ARRANGEMENT
Selection Arrangement

ITEM NO.	DESCRIPTION	QTY
1	INPUT SHAFT WITH PINION	01
2	1 ST STAGE WHEEL	01
3	FINAL PINION SHAFT	01
4	OUTPUT WHEEL	01
5	HOLLOW SHAFT	01
6	INPUT BEARING	02
7	INTERMEDIATE BEARING	02
8	OUTPUT BEARING	02
9	THRUST BEARING	02
10	INPUT OIL SEAL	02
11	OUTPUT OIL SEAL	02
